Zhuzhou Xinshuo Advanced Materials Co.LTD,branded as SIEESO carbide factory, is a professional manufacturer of Cutting Tools and Carbide material. Since Sieeso started ,it has specialized in the Design and Manufacture of High-Quality Cutting Tools & Carbide material. Having more than thousands different kinds of items and huge stocks. Sieeso has a key product line for tools and material with advanced equipment and instruments.

50% of our products provide as OEM project for world-class cutting companies and 50% to do as our own brand. Our products have been sold to all-around the world, Such as Russian, Turkey, Europe, USA, Mexico, Vietnam, Thailand, India, Malaysia, and so on.

1. Products Description

l  Hardness:   HRA 91.8-92.5

l  Work piece:  HRC45-50   HRC55-60   HRC65   HRC68

l  Helix angle:  30°-45 °

l  Diameter of cutting edge:   0.2-0.9 mm; 1-20 mm

l  Diameter of rods:   4-20 mm

l  Length:   50-100 mm

l  Cutting Form:   Flat, Square, Ball nose, Corner Radius, Taper Flute, etc

l  Flutes No: 1-8

l  Customized Available

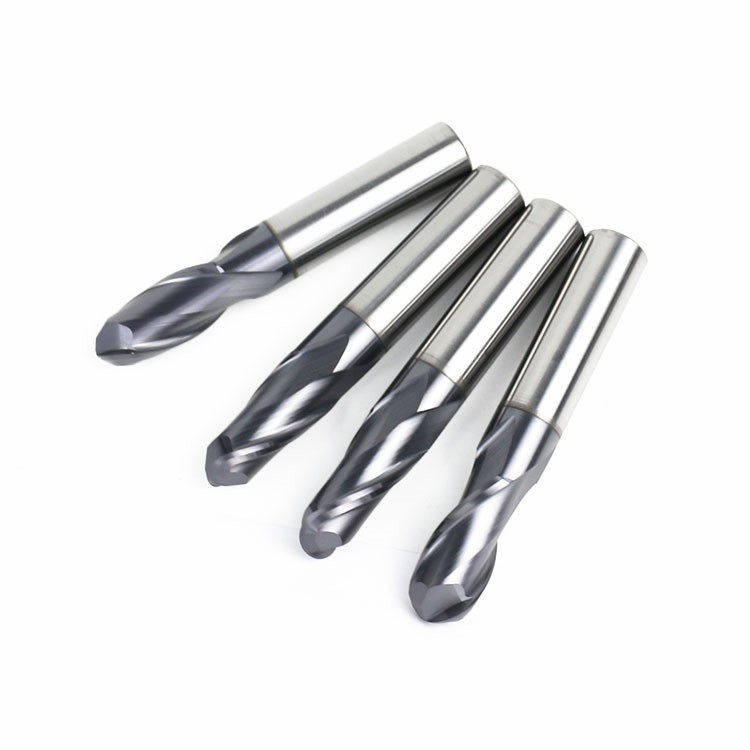

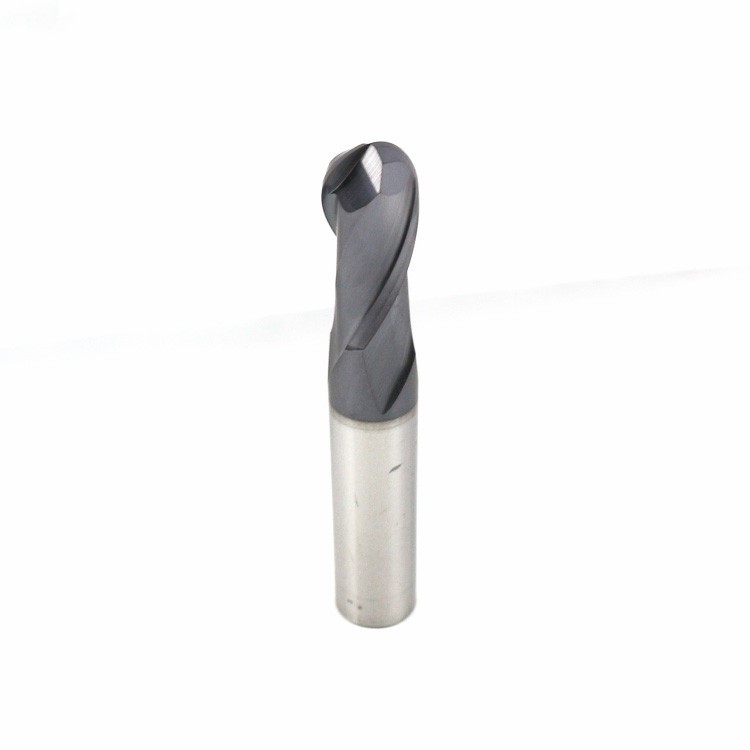

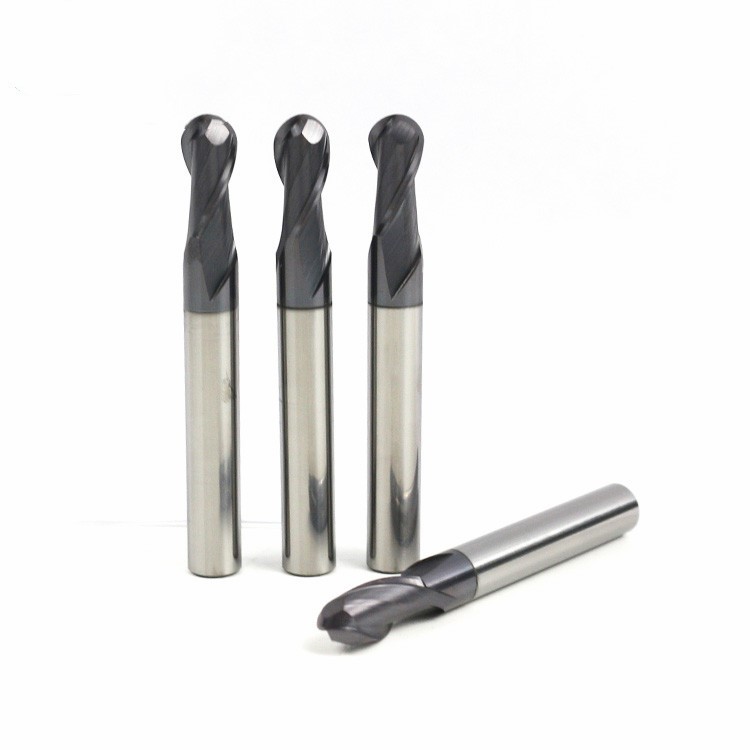

Specifical of our carbide ball nose  endmills:

2.Super Raw Material

Item	HRC50	HRC55	HRC60	HRC65
Grade	YG10X	YL10.2 & WF25	Germany K44 &K40	Sandvik H10F
Details	Grain size 0.7um, Co10%,  Flexural strength  3320N/mm2	Grain size 0.6um,  Co10%,  Flexural  strength 4000N/mm2	Grain size 0.5um, Co12%,  Flexural strength  4300N/mm2	Grain size 0.5um,  Co10%,  Flexural  strength 4300N/mm2



3.Super Coating

Coating Classifying and Advantage
Item	Coating Type	AlTiN	TiAlN	TiSiN	NaNo
Characteristic	Hardness(HV)	3300	2800	4300	42(GPA)
	Thickness(UM)	2.5-3	2.5-3	3	3
	Oxidation Temp.(°C)	900	800	1000	1200
	Friction  Coefficient	0.35	0.3	0.25	0.4
	Color	Black	Dark Purple	Copper	Blue
	Advantages	High heat stability	Normally  cutting	Suitable for heavy  cutting, and high  hardness cutting	For high precision  Cutting
		Suitable for high  speed,  dry cutting		Suitable for cutting  mould steel, stainless  steel	Suitable for high  hardness  cutting, mould steel  processing
		Most suitable for  carbide cutting tools,  turning insert

4.Our advantage:

1.Provide a high feed speed and improve the process efficiency.

2.Suitable for high hardness steel and can keep a long service life.

3. Material Solid carbide and whole forging processing make the turning tool with long service life, better wear-resistance, strength and rigidity, high working efficiency.

4. Unique surface treatment with good antiseptic property.

5. High seismic resistance performance, which can improve the surface finish degree of the workpiece.

6. Competitive price and fast delivery will save the time and cost.

5. Our Solid Carbide Endmills Plants&Euipments



6 Our Package

7 Shipping

8 Payment

9 Our Service

Pre-sale Service:

We have professional sales staff and application engineer; they can do the drawing confirmation and previous communication about the production and design of the tools based on your special requirements.

Sales Service:

Our professional sales staff will communicate and make reasonable production schedules based on your order requirements and delivery time. Meanwhile, sales staff can also know the status of orders anytime and communicate with you timely.

After-sale Service:

Our professional sales staff will make return visits regularly, to know all the situation you have encountered during the application of the ordered products and then feedback to company. At the same time, we will arrange the returning and changing of the products timely if they have possible quality problems.

Technical Support:

We have a number of veteran tooling design engineers, who can offer reasonable suggestions on the working procedure of your products, help you to improve the production efficiency. More importantly, we can design the products according to your requirements.
