ISO general turning inserts

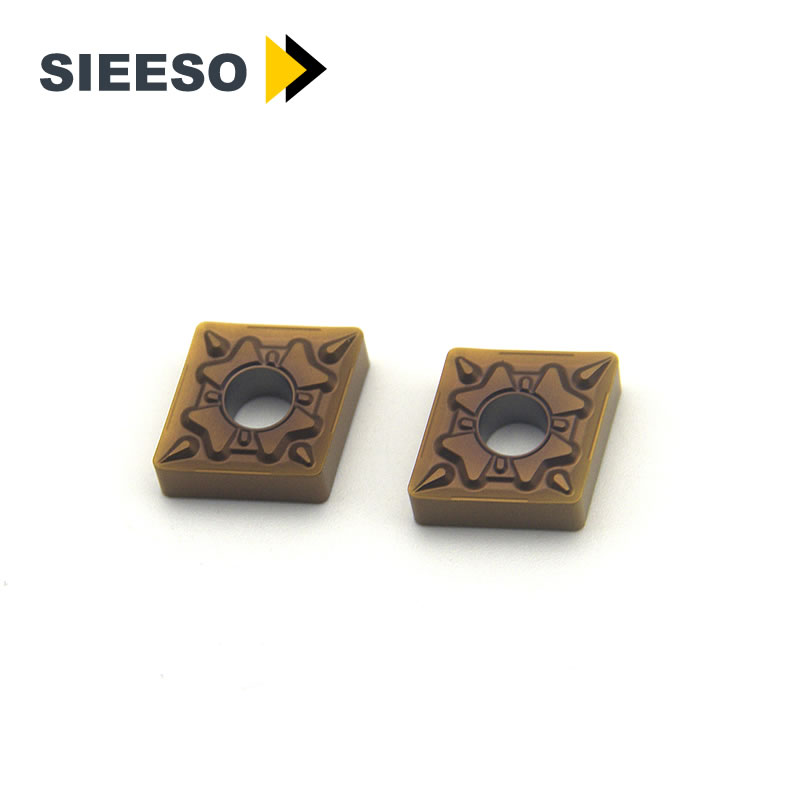

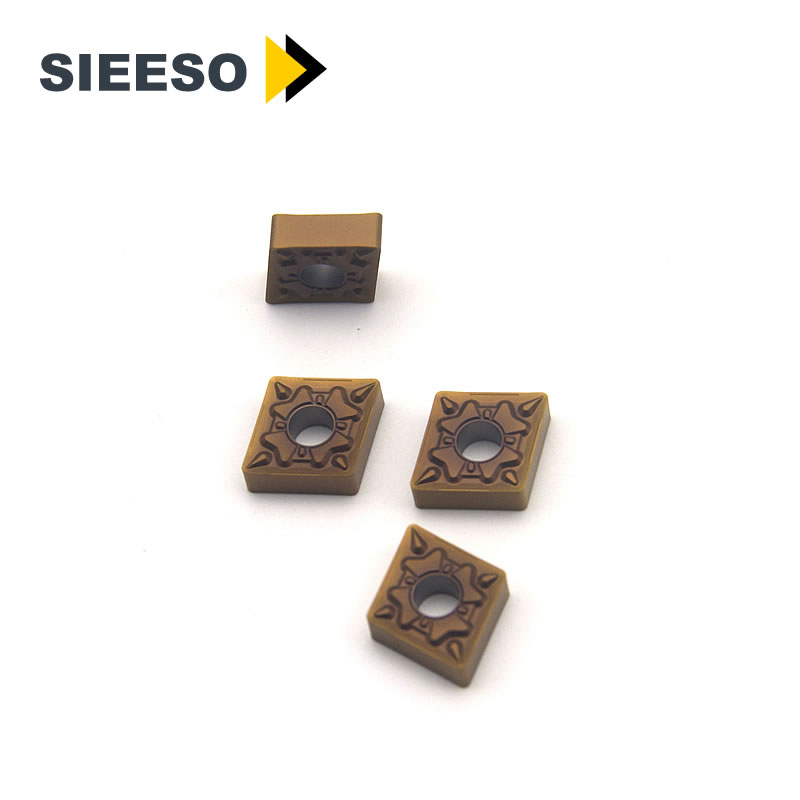

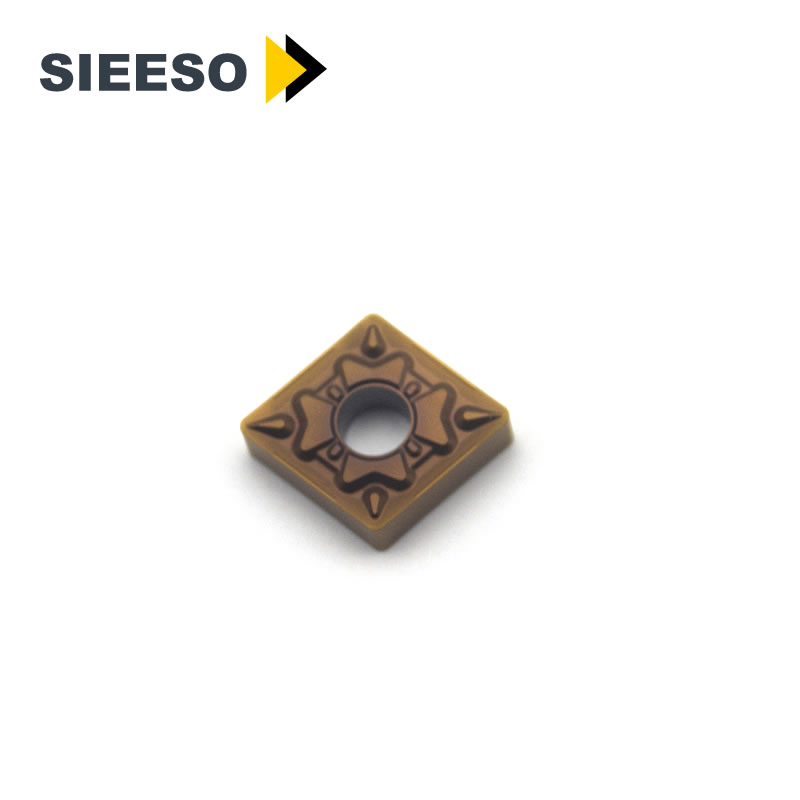

  • CN**types CNC Turning Inserts With Excellent Performance
  • CN**types CNC Turning Inserts With Excellent Performance
  • CN**types CNC Turning Inserts With Excellent Performance
CN**types CNC Turning Inserts With Excellent PerformanceCN**types CNC Turning Inserts With Excellent PerformanceCN**types CNC Turning Inserts With Excellent Performance

CN**types CNC Turning Inserts With Excellent Performance

  • MOQ:10PCS
  • long life span
  • high roughness
  • good wear rsistance
  • Short Description:: Quality Carbide Turning Inserts manufacturers & exporter - buy Cnc Turning Tools Inserts SNMG from China manufacturer. Top 10 carbide insert cutting tool manufacturers & wholesaler in China
  •   Send email

Zhuzhou Xinshuo Advanced Materials Co.LTD,branded as SIEESO carbide factory, is a professional manufacturer of Cutting Tools and Carbide material. Since Sieeso started ,it has specialized in the Design and Manufacture of High-Quality Cutting Tools & Carbide material. Having more than thousands different kinds of items and huge stocks. Sieeso has a key product line for tools and material with advanced equipment and instruments.


50% of our products provide as OEM project for world-class cutting companies and 50% to do as our own brand. Our products have been sold to all-around the world, Such as Russian, Turkey, Europe, USA, Mexico, Vietnam, Thailand, India, Malaysia, and so on.


1 Basic Information

Basic information

Material:

Tungsten Carbide

Grade:

Steel/Stainless/Cast Iron

Chip breaker:

Process For Semi Finish , Finish   And Rough

Color:

Black/Yellow

Size:

CNMG,CNMM,CNEG

Coating:

CVD/PVD

Place of Origin:

Zhuzhou, China

Certification:

ISO9001:2015/ CQC


One type of well commented carbide   turning inserts, it is very popular among our customers all over the world.

Description:

Suitable to the holders of DCLNR/L   PCBNR/L PCLNR/L MCBNR/L MCLNR/L PCLNR/L.


And this type has samples in stock   commonly. Have different choices for dimensions, chip breakers and grade,   normally it's 12 size, with different corner radius.

Application:

Finishing and semi-finishing CNC   machinery.

Workpiece:

Finishing and semi-finishing of   stainless steel, steel , hard steel , cast iron , ect.

2 Specification

Type

S

Φd

r

CNMG090304-DDF

3.18

3.81

0.4

CNMG090308-DDF

3.18

3.81

0.8

CNMG120404-DDF

4.76

5.16

0.4

CNMG120408-DDF

4.76

5.16

0.8

CNMG120412-DDF

4.76

5.16

1.2

CNMG090304-DPM

3.18

3.81

0.4

CNMG090308-DPM

3.18

3.81

0.8

CNMG120404-DPM

4.76

5.16

0.4

CNMG120408-DPM

4.76

5.16

0.8

CNMG120412-DPM

4.76

5.16

1.2

CNMG120416-DPM

4.76

5.16

1.6

CNMG160608-DPM

6.35

6.35

0.8

CNMG160612-DPM

6.35

6.35

1.2

CNMG160616-DPM

6.35

6.35

1.6

CNMG190608-DPM

6.35

7.94

0.8

CNMG190612-DPM

6.35

7.94

1.2

CNMG190616-DPM

6.35

7.94

1.6

CNMG120408-DTR

4.76

5.16

0.8

CNMG120412-DTR

4.76

5.16

1.2

CNMG120416-DTR

4.76

5.16

1.6

CNMG160608-DTR

6.35

6.35

0.8

CNMG160612-DTR

6.35

6.35

1.2

CNMG160616-DTR

6.35

6.35

1.6

CNMG190608-DTR

6.35

7.94

0.8

CNMG190612-DTR

6.35

7.94

1.2

CNMG190616-DTR

6.35

7.94

1.6

CNMG190624-DTR

6.35

7.94

2.4

CNMG120404-WFF

4.76

5.16

0.4

CNMG120408-WFF

4.76

5.16

0.8

CNMA120404

4.76

5.16

0.4

CNMA120408

4.76

5.16

0.8

CNMA120412

4.76

5.16

1.2

CNMA120416

4.76

5.16

1.6

CNMA160608

6.35

6.35

0.8

CNMA160612

6.35

6.35

1.2

CNMA160616

6.35

6.35

1.6

CNMA160620

6.35

6.35

2

CNMA160630

6.35

6.35

3

CNMA190612

6.35

7.94

1.2

CNMA190616

6.35

7.94

1.6


3 Chip Breaker


Chip   Breaker

Precision

Recommended   cutting parameters

Future


DPF

M

ap=0.002~0.039(inch) fn=0.002~0.014(inch/r)

Recommended chipbreaker for fine-finishing P-kind soft steel

For Finishing





DDF

M

ap=0.012~0.079(inch)
  fn=0.002~0.014(inch/r)

Double-side   chipbreaker with M-class tolerance for finish machining carbon and alloy   steels.

DMF

M

ap=0.002~0.039(inch) fn=0.002~0.012 (inch/r)

Recommended chipbreaker for finishing M-kind materials

WCM

M

ap=0.012~0.079(inch)   fn= 0.004~0.016(inch/r)

Wiper   chipbreaker for semi-finishing

WIPER

without chip-breaker       (flat   top)

M

ap=0.012~0.472(inch) fn=0.002~0.024(inch/r)

For machining cast iron




4 Grade Information



Grade   No

APPLICATION

Comparison   table for Grade No

DH3040

CVD coated grade, has good flaking resistance. It is suitable for   turning of cast iron at high speed, and light intermittent cutting can be   supported even at moderate speed. It is also suitable for milling of cast   iron.

YBD152 YBD252 GC3125 TT1500 UC5115 T5020 IC9015

DH1045

CVD   coated grade, it suitable for finishing and semi-finishing of steel at high   speed. Cutting

YBC152   GC4215 TT1300 T9005 IC9150 CA115

DH1055

CVD coated grade, it has high capability against plastic deformation and   good hardness of cutting edge. It is preferred grade for machining of steel   from finishing to roughing.

YBC252 GC4025 TT5100 T9015 CA5535 IC9350

DW5015

The   combination of nc-TiAlN coating and fine grain substrate makes it suitable   for turning of various materials and finishing and semi-finishing of   high-temperature alloys.

YBG102   GC1525 PC205K PR510 IC900

DD101

finishing and semi-finishing for hard ,finishing for higt-temp alloy.

YD101


5 Payment & Shipping Terms


Minimum Order Quantity:

10PCS

Price:

Negotiation



Packaging   Details:

Inner plastic box ; outside   wooden box or as customer's special requirements.



Payment   Terms:



T/T,WesternUnion,Paypal,   MoneyGram,Alipay,L/C, D/A, D/P

Delivery Time:

In stock 3 days,out of stock 15 working   days

Supply   Ability:

500000pcs per month


6 What makes SIEESO Carbide Top on this field


Quick   Response

Inquiry   will be replied within 8 hours.

High   Quality

Well-trained   workers and more than 13 years’ experience. Regular orders from our customers   all over the world, already very stable quality.

Competitive   Price

Directly   from factory to save your cost.

Short   Lead Time

Being   efficient: 3 days for samples and 10-35 days for bulk orders.

Flexibility

Small   orders are acceptable for quick delivery and to help you reduce stock cost.   Have different sizes, coating color have yellow, black, purple, grey, broze   and different chip breakers for choice.

OEM

Customized production according   to your drawings, samples or designs.



7.Products Pictures



Factory Pictures:


SIEESO FACTORY
SIEESO FACTORYSIEESO FACTORY
