Indexable Drills

  • High Efficiency Carbide U Drill Inserts WCMX06T308
  • High Efficiency Carbide U Drill Inserts WCMX06T308
  • High Efficiency Carbide U Drill Inserts WCMX06T308
High Efficiency Carbide U Drill Inserts WCMX06T308High Efficiency Carbide U Drill Inserts WCMX06T308High Efficiency Carbide U Drill Inserts WCMX06T308

High Efficiency Carbide U Drill Inserts WCMX06T308

  • 1.MOQ: 10PCS
  • 2. lub neej ntev
  • 3. siab zog
  • 4. zoo roughness
  • Lus piav qhia luv luv:: High Efficiency Carbide U Drill Inserts WCMX06T308, Zoo Carbide Laum Inserts manufacturers & exporter - yuav WCMX06T308 Carbide Laum Inserts CNC Indexable Milling Cutter PVD Txheej los ntawm Tuam Tsho
  •   Xa email

Zhuzhou Xinshuo Tshiab Advanced Materials Co., Ltd, muaj npe raws li SIEESO carbide Hoobkas, yog lub chaw tsim khoom ntawm Cov cuab yeej txiav thiab cov khoom siv Carbide. Txij li thaum Sieeso tau pib, nws tau tshwj xeeb hauv Kev Tsim thiab Tsim Cov Cuab Yeej Zoo Txiav & Cov Khoom Siv Carbide. Muaj ntau tshaj li ntau txhiab yam khoom sib txawv thiab cov khoom lag luam loj. Sieeso muaj cov khoom lag luam tseem ceeb rau cov cuab yeej thiab cov khoom siv nrog cov cuab yeej thiab cov cuab yeej siv siab heev.


50% ntawm peb cov khoom muab raws li OEM project rau ntiaj teb no-class txiav tuam txhab uas muag thiab 50% ua raws li peb tus kheej hom. Peb cov khoom tau raug muag mus rau thoob plaws ntiaj teb, xws li Lavxias, Qaib Cov Txwv, Tebchaws Europe, Tebchaws USA, Mexico, Nyab Laj, Thaib, Is Nrias teb, Malaysia, thiab lwm yam.

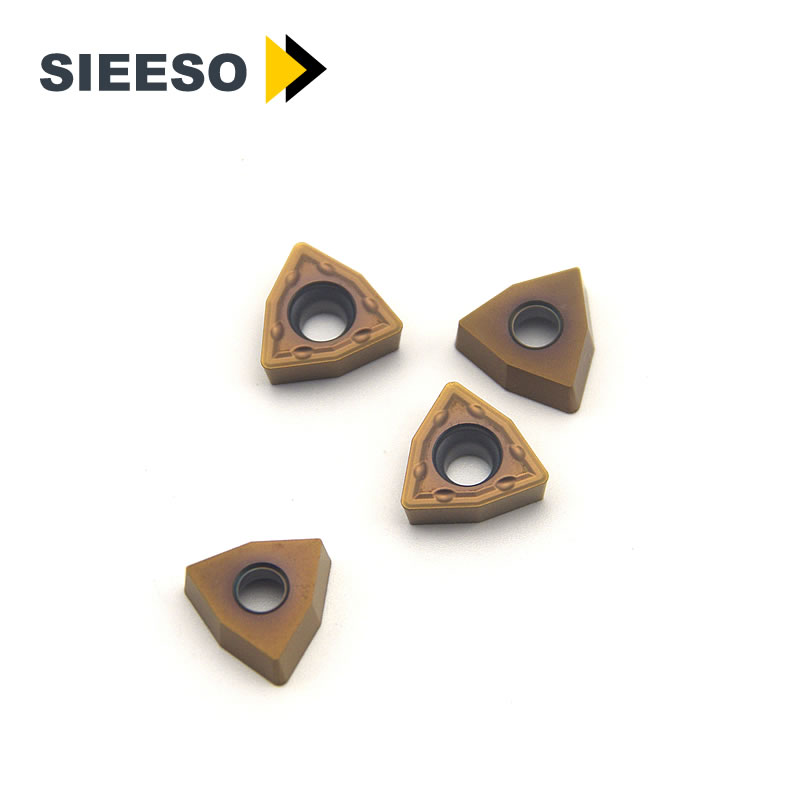

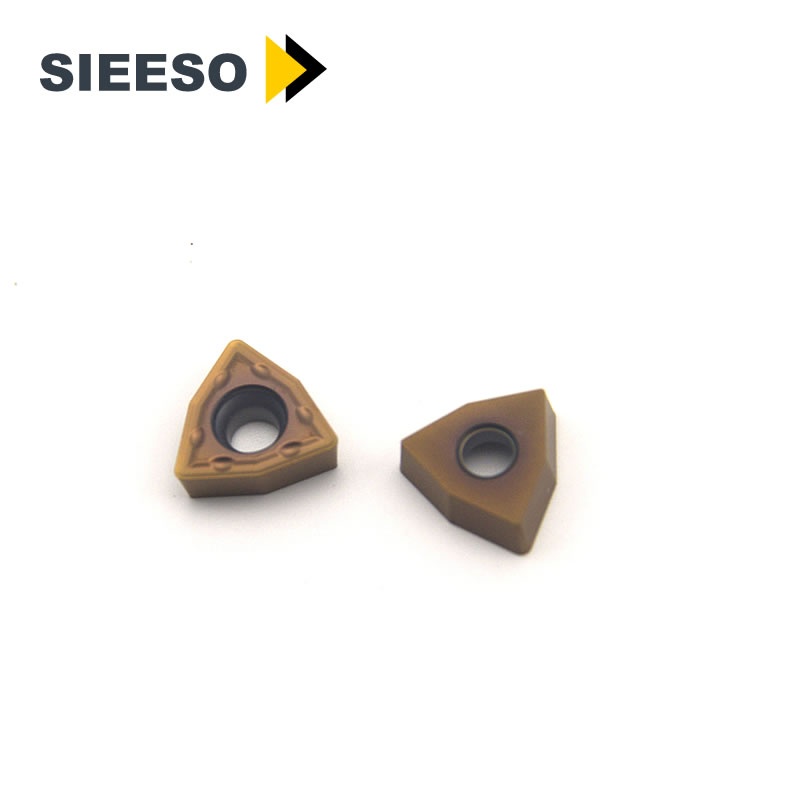

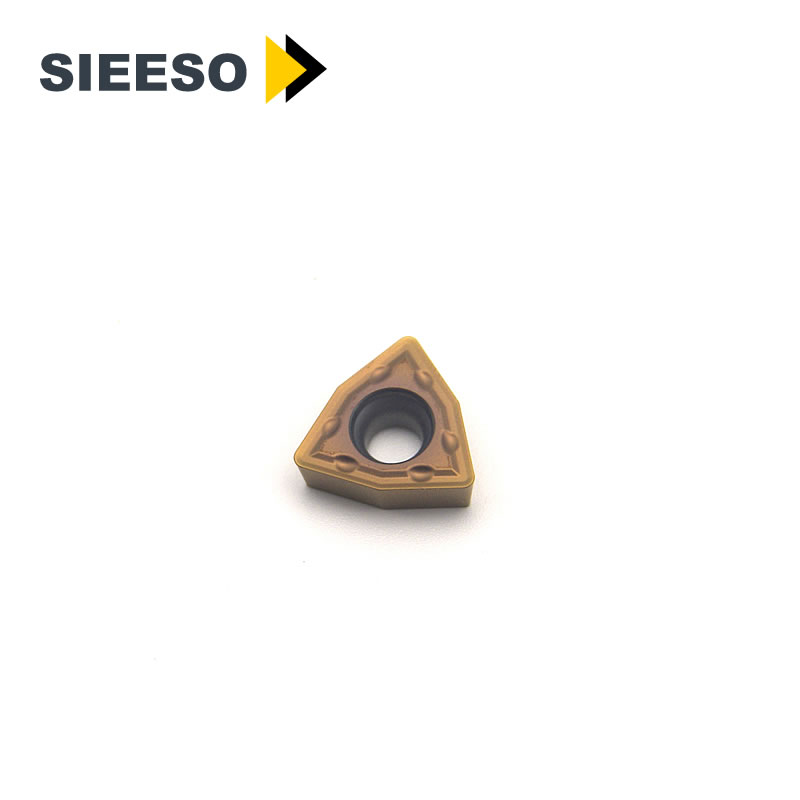

       High Efficiency Carbide U Drill Inserts WCMX06T308


1 Cov ntaub ntawv yooj yim


Cov ntaub ntawv yooj yim

Khoom siv:

Tungsten Carbide

Qib:

Hlau / Stainless / Cam khwb cia hlau

Chip breaker:

Txheej Txheem Rau Semi Finish, Finish Thiab Rough

Xim:

Dub / Daj

Loj:

WCMX Txhua Series Muaj Pwm Thiab Hauv Tshuag

Txheej:

CVD/PVD

Qhov chaw Keeb Kwm:

Zhuzhou, Suav teb

Ntawv pov thawj:

ISO9001: 2015 / CQC



Nqe lus piav qhia:

l   Rau machining hlau, stainless hlau, cam khwb cia hlau thiab tshav kub-resistant alloys.

l   Drilling lub cev nrog PVD coated nto.

l   Lub hnab ntim loj loj rau kev tshem tawm nti zoo dua.

l   Optional Adapter rau cov cua txias sab hauv hauv cov pa tshuab.

l   Txoj kab uas hla 13.0-50.0 mm

Daim ntawv thov:

WCMX hom U laum cov cuab yeej

U-drilling insert / indexable laum inserts series

Nws yog tsim rau kev ua cov ntaub ntawv ntawm carbon steel, alloy steel thiab austenitic stainless hlau nrog siab txiav efficiency nyob rau hauv ruaj khov ua hauj lwm tej yam kev mob.

Workpiece:

Finishing thiab semi-tiav ntawm stainless hlau, hlau, tawv steel, cam khwb cia hlau, ect.


2 Specification






HOM

Qhov ntev

L

Ib I.C

S

Ib d



r



WCMX030208R-53/DMM

3.3

6.35

2.38

3.1

0.8

WCMX040208R-53/DMM

4.3

6.35

2.38

3.1

0.8

WCMX050308R-53/DMM

5.5

9.525

3.18

3.36

0.8

WCMX06T308R-53/DMM

6.5

9.525

3.97

3.7

0.8

WCMX080412-53/DMM

8.7

12.7

4.76

4.3

1.2



3 Qib Cov Lus Qhia


Qib No

Daim ntawv thov





CVD txheej



DH7442



CVD coated P20-P40 / K20-K40 carbide substrate rau kev ua haujlwm nrog kev txiav nrawm dua thiab pub tus nqi hauv cov hlau thiab cam khwb cia hlau.



DH3050

CVD coated K20-K35 carbide substrate. Optimized rau nruab nrab mus rau roughing lag luam ntawm cam khwb cia hlau thiab hlau. Zoo hnav tsis kam thiab toughness ntawm kev txiav ceev dua.





PVD txheej

DW5025



PVD coated M10–M25 / P10–P30 carbide substrate rau kev ua tiav rau nruab nrab daim ntawv thov ntawm stainless hlau thiab hlau (milling). Zoo hnav tsis kam nyob rau hauv daim ntawv thov dav.

DW2025



PVD multilayer coated P10–P30/M20–M40/S15–S25 carbide substrate rau xov rau nruab nrab daim ntawv thov ntawm stainless hlau, super alloy thiab hlau (milling). Zoo hnav tsis kam thiab thermal stability nyob rau hauv daim ntawv thov dav.

DW4050



PVD coated M25-M40 / P25-P35 carbide substrate rau hlau thiab stainless hlau. Tshwj xeeb tshaj yog rau sab hauv ntxig ntawm kev ua haujlwm drilling.



Uncoated carbide

DD201

Uncoated N10–N30 / K10–K30 carbide substrate   rau nruab nrab daim ntawv thov hauv txhuas thiab lwm yam khoom siv.


4 Chip Breaker


Chip breaker

Daim ntawv thov

DPMX

Rau machining hlau, stainless hlau thiab cam khwb cia hlau

DMM

Rau machining ntawm hlau, stainless hlau thiab tshav kub-resistant alloys.

PG

Rau machining ntawm steel thiab cam khwb cia hlau

D

Rau machining hlau, stainless hlau thiab cam khwb cia hlau.

53

Rau machining hlau, stainless hlau, cam khwb cia hlau thiab non-ferrous hlau


5 Cov nqe lus them nqi & Shipping




Yam tsawg kawg nkaus Order Quantity:





10PCS



Nqe:





Kev sib tham



Ntim Cov Lus Qhia:

Plastic lub thawv; sab nraum lub thawv ntoo lossis raws li cov neeg siv khoom tshwj xeeb.



Cov nqe lus them nqi:



T / T, WesternUnion, Paypal,   MoneyGram, Alipay, L / C, D / A, D / P

Lub sij hawm xa tuaj:

Hauv Tshuag 3 hnub, tawm ntawm Tshuag 15 hnub ua haujlwm

Kev Muaj Peev Xwm:

500000pcs ib hlis twg
