ISO general turning inserts

  • Carbide Turning Inserts WNMG080404-MA CNC Cutiing Tools
  • Carbide Turning Inserts WNMG080404-MA CNC Cutiing Tools
  • Carbide Turning Inserts WNMG080404-MA CNC Cutiing Tools
Carbide Turning Inserts WNMG080404-MA CNC Cutiing ToolsCarbide Turning Inserts WNMG080404-MA CNC Cutiing ToolsCarbide Turning Inserts WNMG080404-MA CNC Cutiing Tools

Carbide Turning Inserts WNMG080404-MA CNC Cutiing Tools

  • 1.Unit Price: $1.0-$1.2 per piece
  • 2.wear resistance
  • 3.raw-materials-made
  • 4.long life span
  • Short Description:: Carbide Turning Inserts WNMG080404-MA CNC Cutiing Tools ,CNC cutting tools,turning inserts ,steel maching,carbide inserts, CNC blade,CNC cutting tools, Negative inserts
  •   Send email

Zhuzhou Xinshuo Advanced Materials Co.LTD,branded as SIEESO carbide factory, is a professional manufacturer of Cutting Tools and Carbide material. Since Sieeso started ,it has specialized in the Design and Manufacture of High-Quality Cutting Tools & Carbide material. Having more than thousands different kinds of items and huge stocks. Sieeso has a key product line for tools and material with advanced equipment and instruments.


50% of our products provide as OEM project for world-class cutting companies and 50% to do as our own brand. Our products have been sold to all-around the world, Such as Russian, Turkey, Europe, USA, Mexico, Vietnam, Thailand, India, Malaysia, and so on.


         Carbide Turning Inserts WNMG080404-MA CNC Cutiing Tools



The economical WNMG 080408 is a double sided 80° Trigon insert, with a 8mm cutting edge length and is approximately 4mm in thickness.  The corner radius (04) is the most commonly used due to its versatility to provide a balance of both strength and excellent finishes.




---ISO Code: WNMG080408/432


---Dimension (inch): L=0.343, I.C.=0.500, S=0.187, d=0.203, r=0.031


---Workpiece Material (ISO): Steels (P10-P35)


---Application: This insert is recommended for general-purpose turning machining of steels.


---Chip Breaker: Flat \Through Type

Coating:Thick TiCN + thick Al2O3 coating on carbide, a grade of Black Diamond Series For Steel Machining


---Grade: DH1055

Comprising of thick TiCN and thick Al2O3 coatings, the grade has high capability against plastic deformation and good hardness of cutting edge. It is preferred grade for machining of steel from finishing to roughing. Under the same cutting conditions, the cutting speed can be increased by more than 25%, while the tool life can be 30% longer under the same cutting speed.


Note: Product sold in packs of 10 units.

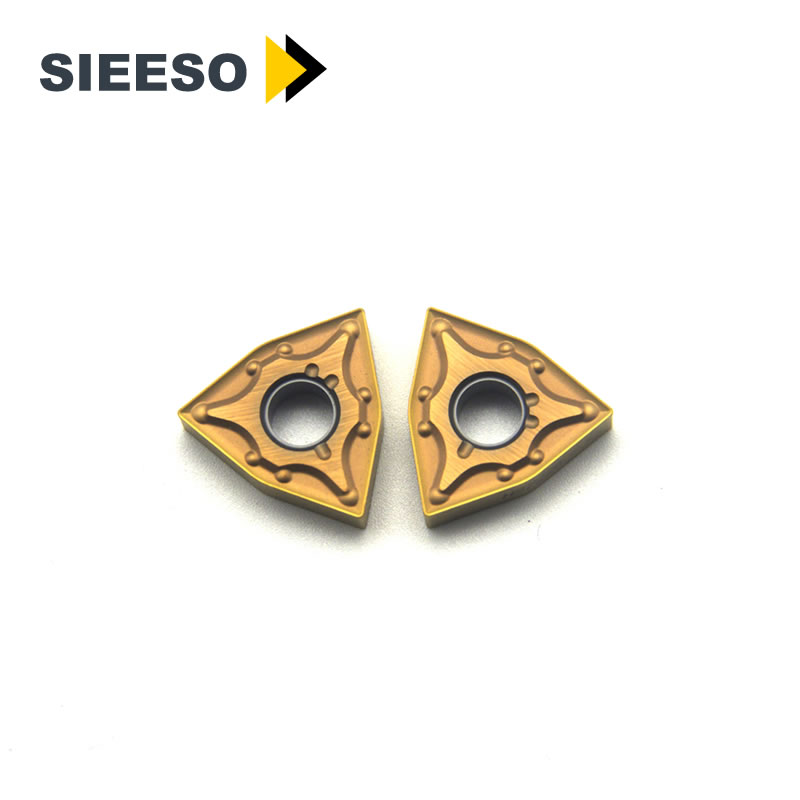

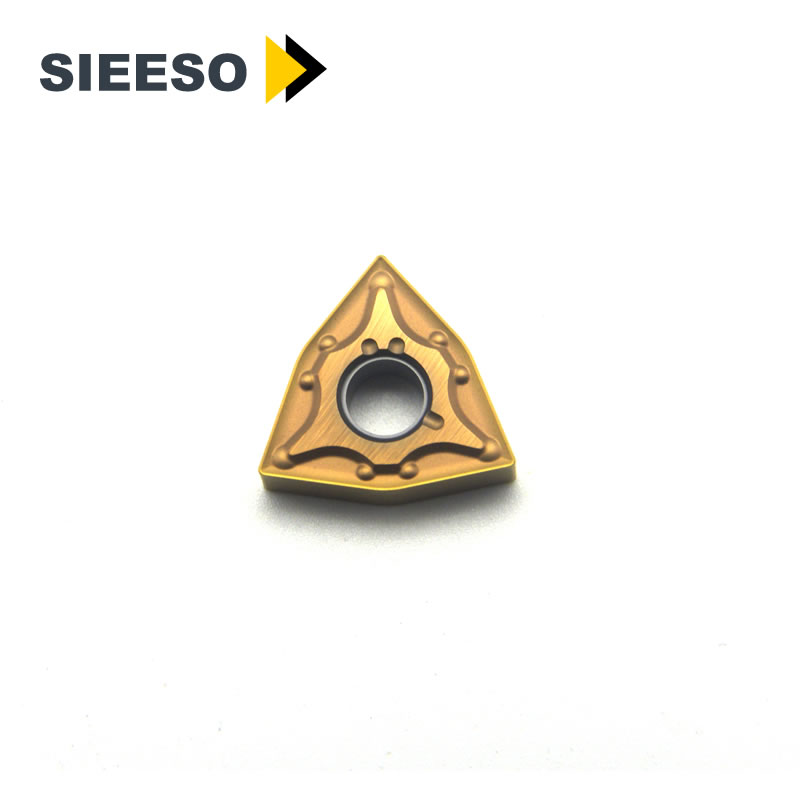

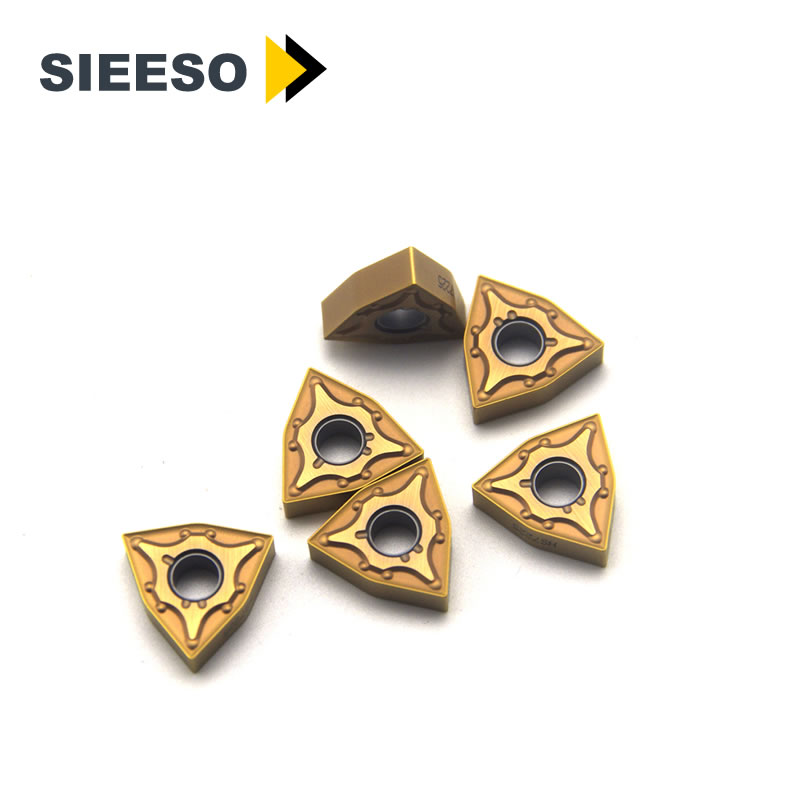

---Products Pictures
